Oil-Immersed Transformer Cores
Oil-Immersed Amorphous Transformer Cores

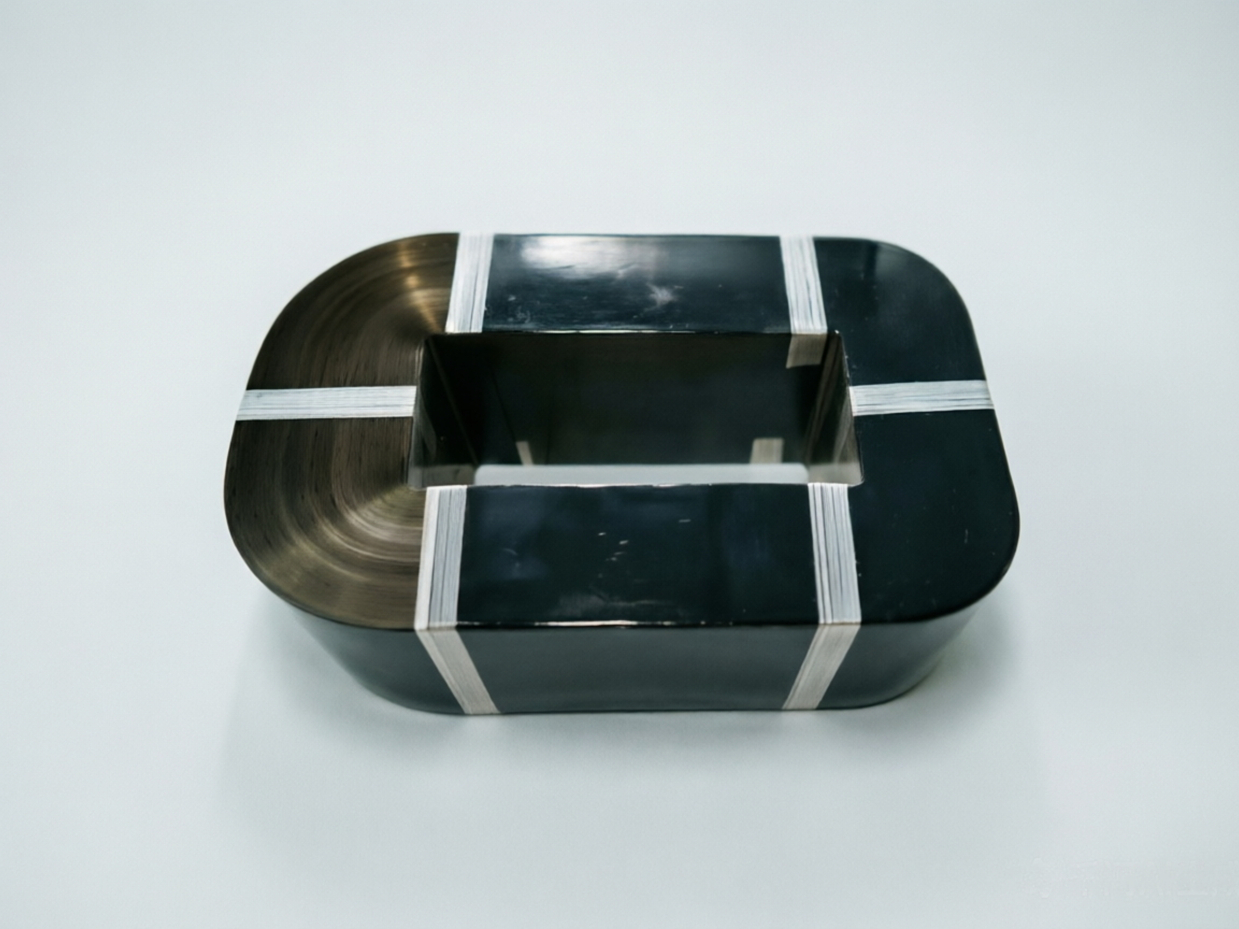

Oil-immersed amorphous transformer cores are made from amorphous alloy ribbons and fully immersed in insulating oil. Their core advantages lie in energy saving and environmental protection: compared to traditional silicon steel transformers, no-load losses can be reduced by approximately 75%, significantly reducing carbon emissions. The oil-immersed design provides excellent insulation and heat dissipation performance, combined with a fully sealed tank structure, making it moisture-proof and corrosion-resistant, very suitable for long-term maintenance-free operation in harsh outdoor environments (such as rural grids and industrial enterprises). Additionally, due to low losses and minimal heat generation, its operational stability is extremely high, making it an ideal choice for green grid construction.
Product Details
Product Details
Product Overview
Suitable for 20kV and 35kV oil-immersed distribution transformers, meeting GB/T 6451 and GB 20052 Grade 1/2 energy efficiency standards. Full series of SBH15 and SBH21 energy efficiency grades available.
Core Features
No-load loss reduced by 60%~70% compared to silicon steel; window inner corner radius 6.4±1.5mm; stacking thickness ≤300mm; window height ≤2000mm; stacking factor 0.88~0.90; weight tolerance ±1.5%.

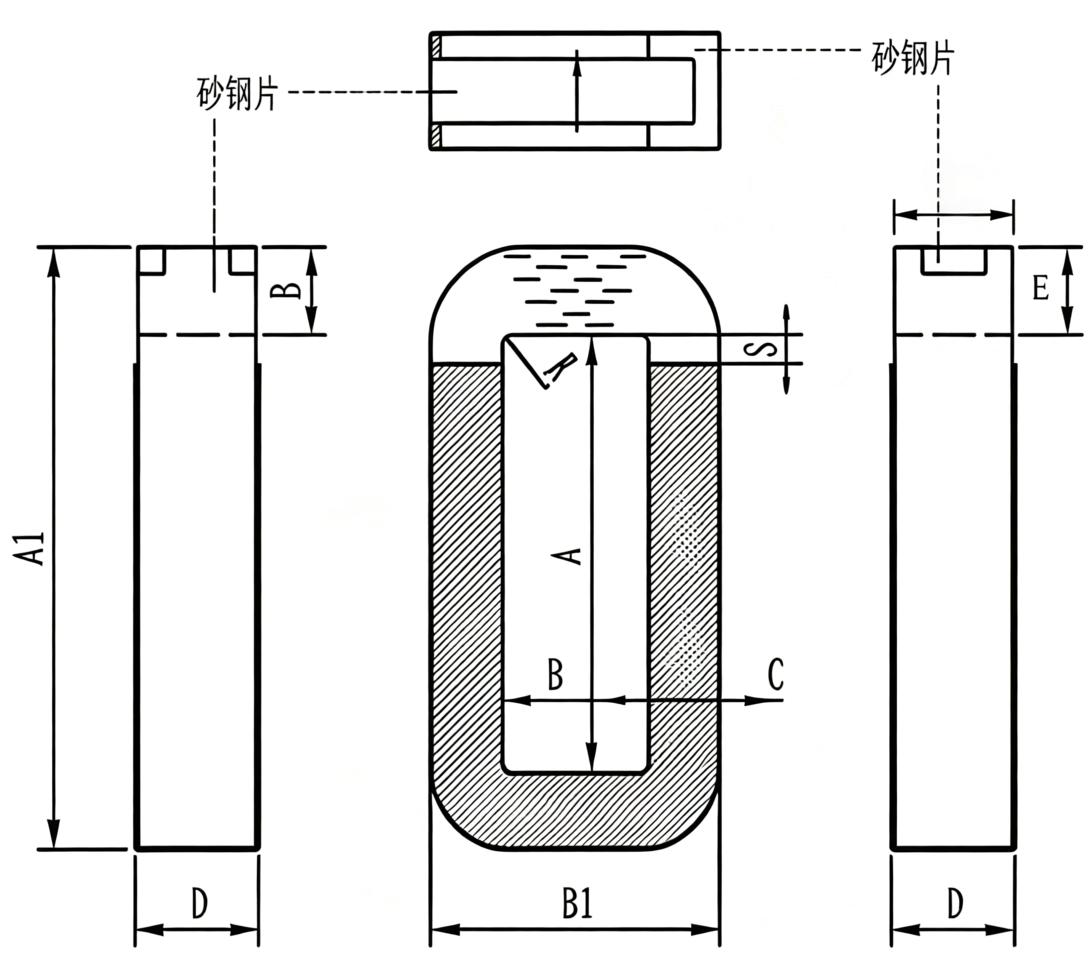

Amorphous Transformer Core Customizable Dimensions
| Parameter | Min Size (mm) | Max Size (mm) |
|---|---|---|
| A | 160 | 1380 |
| B | 60 | 500 |
| C | 20 | 200 |
| B1 | 100 | 900 |
General Processing Capabilities and Tolerances
| No. | Feature | Processing Capability | Tolerance |
|---|---|---|---|
| 1 | Core Window Height | ≤2000mm | +0/+3mm |
| 2 | Core Window Width | ≥50mm | +0/+3mm |
| 3 | Core Maximum Outer Dimensions | 2200×2500mm | — |
| 4 | Core Stacking Thickness | ≤300mm | Maximum |
| 5 | Core Height | Ribbon Width + Coating Thickness | Maximum |
| 6 | Core Lap Joint Method | Distributed and Fixed | — |
| 7 | Core Lap Joint Thickness | Stacking Thickness × 1.08~1.25 | Maximum |
| 8 | Core Window Inner Corner Radius | 6.4mm | ±1.5mm |
| 9 | Core Stacking Factor | 0.88~0.90 | — |
| 10 | Core Weight | Design Value | ±1.5% |
